| ชื่อแบรนด์: | Enerkey |
| เลขรุ่น: | EK-24S20EB |
| ขั้นต่ำ: | 3 ชิ้น |
| ราคา: | $328-$358 |
| รายละเอียดบรรจุภัณฑ์: | กล่องกระดาษแข็งแรง +โฟม Eva |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
Enerkey 20A Smart Active Balancer 4s 8s 16s 20s 24s 12v 24v 48v 60v 72v Lifepo4 Balancer Battery Equalizer
EnerKey New 4TH 4A 8A 10A 15A 20A Smart Active Balancer 3S 4S 5S 6S 8S 14S 16S 20S 21S 22S 24S Lifepo4 / Li-ion/ LTO Battery Equalization For Battery repair and Home energy storage system.
Product Overview

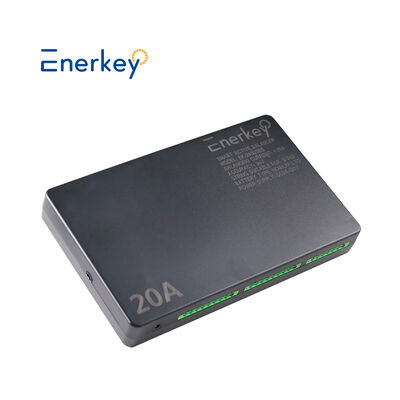

The 24S 20A Lithium Battery Smart Active Balancer is a high-performance energy management device specifically designed for 24-series lithium battery packs. It utilizes advanced active balancing technology, achieving voltage balance between battery cells through supercapacitor-based energy transfer, significantly improving the overall performance and lifespan of the battery pack. This product is suitable for large-capacity lithium battery applications such as electric vehicles, energy storage systems, and electric bicycles.
Core Functions
Smart Active Balancing: Uses supercapacitors as energy storage elements for energy transfer, achieving an efficiency of over 90%, far exceeding traditional passive balancing methods.
20A High-Current Balancing Capability: Supports fast balancing, significantly shortening balancing time.
24-Series Battery Pack Management: Precisely monitors the voltage of each battery cell, with a balancing accuracy of ±1mV.
Dynamic Balancing Mode: Real-time adjustment of charging current for each battery cell during charging.
Static Balancing Mode: Periodically maintains the balanced state of the battery pack during discharge.
Product Features
High-Precision Monitoring: Millivolt-level voltage detection accuracy to promptly identify abnormal batteries.
Intelligent Control: Microcontroller automatically adjusts the balancing strategy, supporting remote monitoring.
Wide Operating Temperature Range: Stable operation in environments from -20℃ to 60℃.
Strong Compatibility: Supports various lithium battery types, including lithium iron phosphate, ternary lithium, and lithium titanate.
Communication Method: Connects to an APP via Bluetooth or to PC software via CAN.
| Product model |

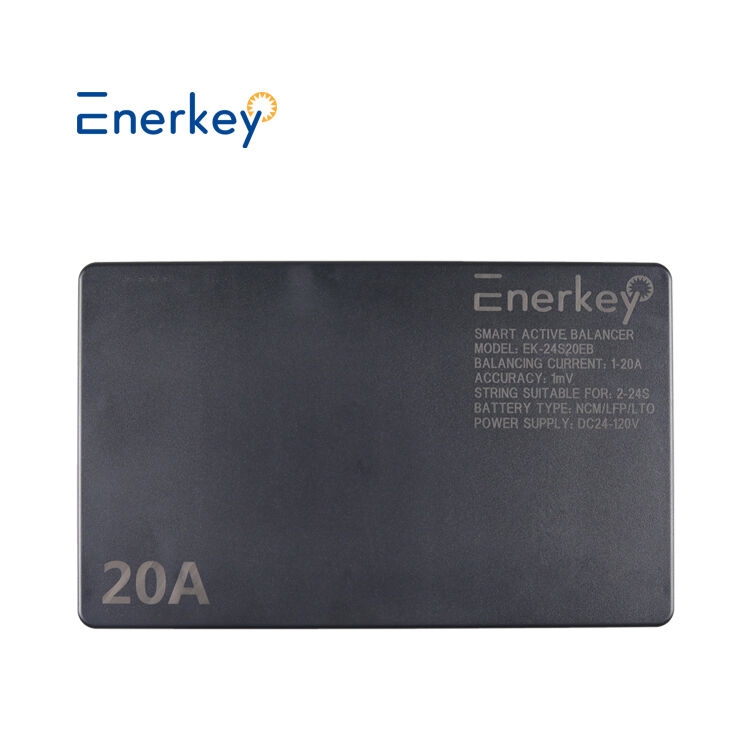

20A Smart Active Balancer for 2-24s (EK-24S20EB) |
||
| Supported battery type |
NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
||
| Single cell voltage collection range |
1.5V~4.5V |
||
| Undervoltage protects sleep voltage |
APP can be customized Settings :1.5-4.2V |
||
| Equilibrium method |
Time-sharing single channel transfer, point-to-point energy transfer |
||
| Reverse protection |
Support disorderly power on detection/protection |
||
| Equilibrium current |
APP can be customized Settings: 1A~20A |
||
| Whether an external power supply is required |
Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV) |
||
| External power supply |
DC 24-120V |
||
| Voltage equalization accuracy |
APP can be customized Settings :1mV(TYP) |
||
| Power failure detection function |
Support |
||
| Wrong wire protection function |
Support |
||
| Fault alarm function |
Support |
||
| Buzzer |
APP can be customized Settings |
||
| Power dissipation |
At equilibrium≈1W,Stop equilibrium≈0.5W |
||
| Operating temperature |
-20℃ ~ +55℃ |
||
|
Application
|

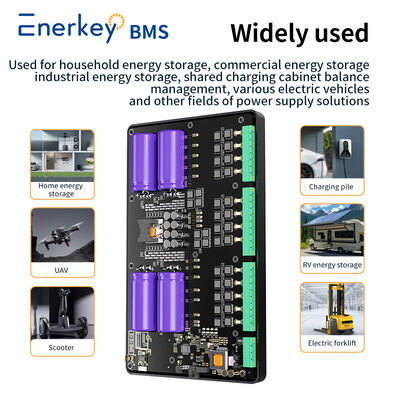

High-power energy storage, base station backup power supply,Solar power station | ||
| Part Name | Q'ty |
| 20A Smart Active Balancer | 1pcs |
| 1m 16AWG Clip Wire | 25pcs |
| 3pin 7.62Pitch Thermial | 1pcs |
| 7pin 7.62Pitch Thermial | 1pcs |
| 9pin 7.62Pitch Thermial | 1pcs |
| DC Adapter | 1pcs |
24S Wiring Diagram
EK-24S20EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:
17S Wiring Diagram
When less than 24 battery strings are connected in series, empty pins are suspended. The following uses 17S as an example.
3S Wiring Diagram
If the battery string has a total voltage lower than 24V, you need to connect 24V to 120V DC power supplies.
The following uses 3S as an example:
40S Cascade Wiring Diagram
EK-24S20EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange".
The following uses the 40S as an example to describe how to install and connect cables:
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
If you have any advices or requests, Warmly welcome your consulting.
|
|
