| ชื่อแบรนด์: | Enerkey |
| เลขรุ่น: | EK-ID40V/60V/80V150A 1IN2 2IN1 |
| ขั้นต่ำ: | 10 ชิ้น |
| ราคา: | $75.26-$82.95 |
| รายละเอียดบรรจุภัณฑ์: | กล่องกระดาษแข็งแรง +โฟม Eva |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

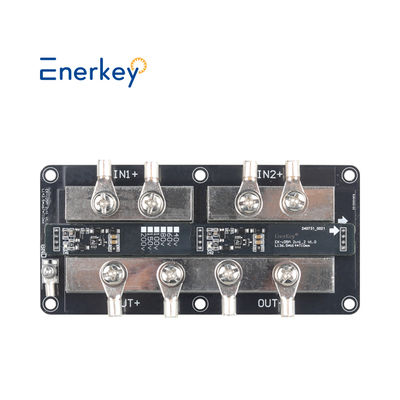

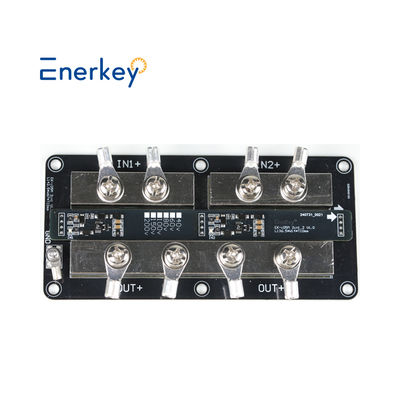

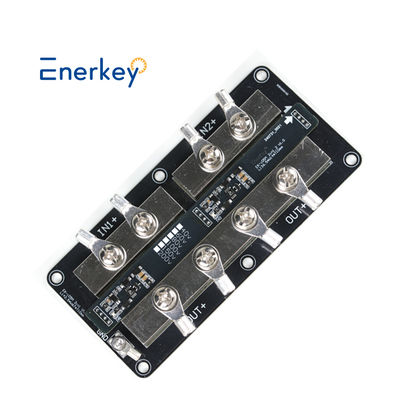

Enerkey Ideal Diode 40V 60V 80V 150A 1in2 2in1 with Reverse Input Protection for Solar Panel Anti-backflow
100% brand new and high quality.
An ideal diode module would have the following key features, aiming for optimal performance and minimal losses. Here’s a breakdown of the main characteristics:
1. Zero Forward Voltage Drop
Ideal Feature: In an ideal diode, the forward voltage drop is zero, meaning when the diode is conducting, it doesn’t add any resistance to the circuit. This results in no power loss during forward conduction.
Real-world Application: Minimizes energy losses and heat generation.
2. Zero Reverse Leakage Current
Ideal Feature: When the diode is reverse biased, there is no current leakage, which means no current flows in the reverse direction.
Real-world Application: Prevents unwanted reverse current, ensuring the circuit behaves as expected and reduces the risk of damage.
3. Infinite Reverse Breakdown Voltage
Ideal Feature: The diode can withstand an infinite reverse voltage without breaking down or allowing reverse current to flow.
Real-world Application: Protects circuits from voltage spikes and ensures the diode won't fail under high reverse voltage conditions.
|
Enerkey Ideal Diode Module 40V 60V 80V 150A 1in2 2in1 Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model | EK-iD40V150A | EK-iD60V150A | EK-iD80V150A |
|
Working voltage range
|
9-40V
|
9-60V |
9-80V
|
|
Product Size(mm)
|
L142.5*W67*T20
|
L142.5*W67*T20 |
L142.5*W67*T20 |
|
Weight with box
|
0.61kg
|
0.62kg |
0.63kg
|
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
NCM/LFP/LTO
|
|
Continuous current
|
300A
|
||
| Peak starting current | 300A | ||
|
Quiescent operating current
|
0.6-1.5mA
|
||
|
Copper foil thickness
|
3.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| On-going internal resistance | NA | ||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories | Terminal lug*9; IN+/OUT+ terminal lug : OTZ6-5, screw M6 *8 GND terminal lug : OTZ2.5-3, screw M3 *1 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
